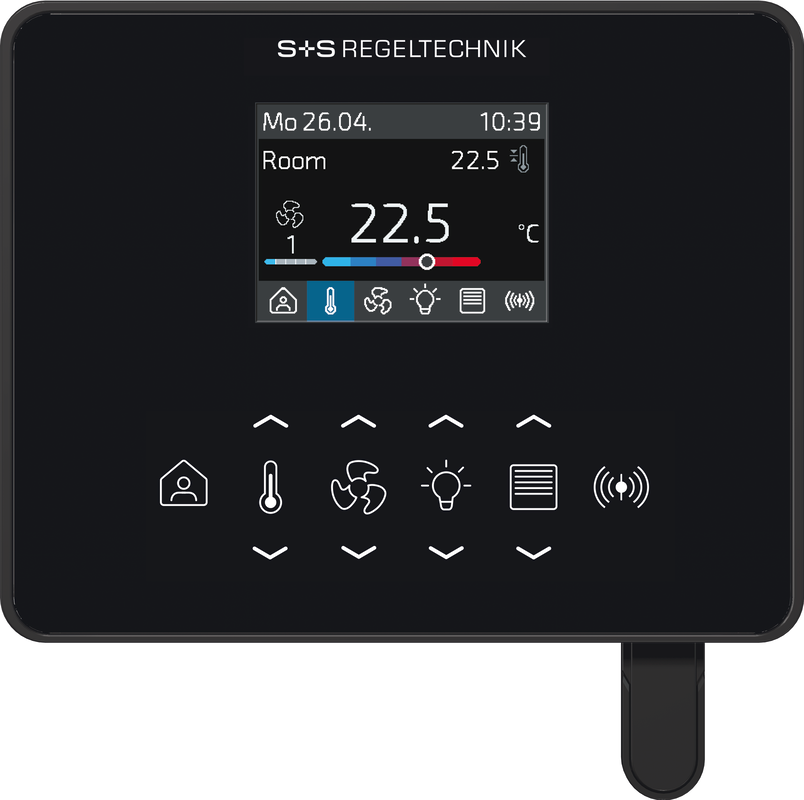

RYMASKON® RYM 1442C-RH-WMOD-BL

The RYMASKON® 1000 / 2000 / 3000 series room operating units are designed to control (up to 5 climate zones) in residential, hotel and office rooms and individually regulate the heating, cooling and fan levels of the interior. The controller variants can be operated as stand-alone devices thanks to the integrated PI, PWM or 2-/3-point control functions. The product family is characterized by its elegant design, intuitive operation and the many possible combinations of the individual components.

The RYMASKON® 1000 C room operating units (controllers) are used to control and regulate heating convectors and fan coil units. Depending on the type variant, the devices are available with analog outputs (0 -10 V) and with digital / relay outputs for controlling heating valves, cooling valves, 6-way valves, staged fans or EC fans. Control is via PI, PWM or 2-/3-point control. The changeover function can be used to operate 2- and 4-pipe systems.

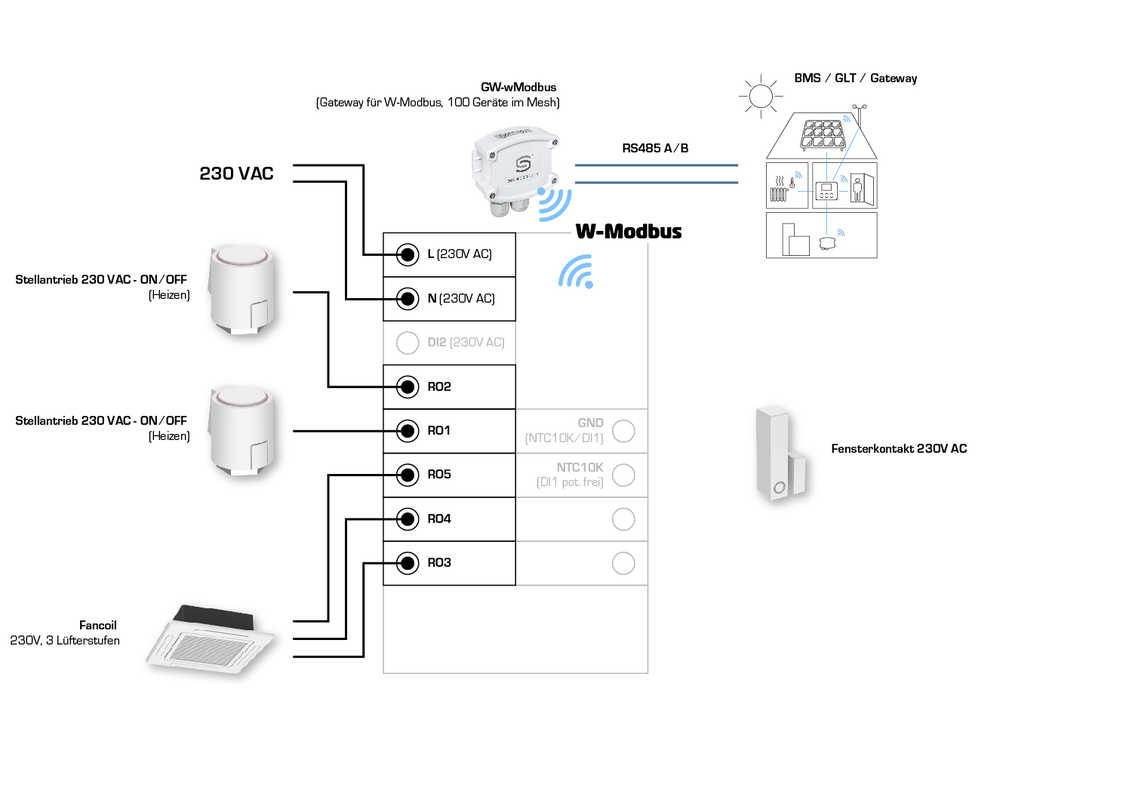

The Modbus or W-Modbus communication interface enables the climate parameters on the controller to be changed and monitored at any time via the BMS. In addition, the sun protection functions (external blinds, venetian blinds) or light (with dimming function) can be controlled via the bus. The visual display is shown on a 2" TFT display and operation is via capacitive buttons (touch keys).

In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. There is also an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact. For example, a window contact or a condensation monitor can be connected. This gives you all the options you need to air-condition rooms flexibly and individually.

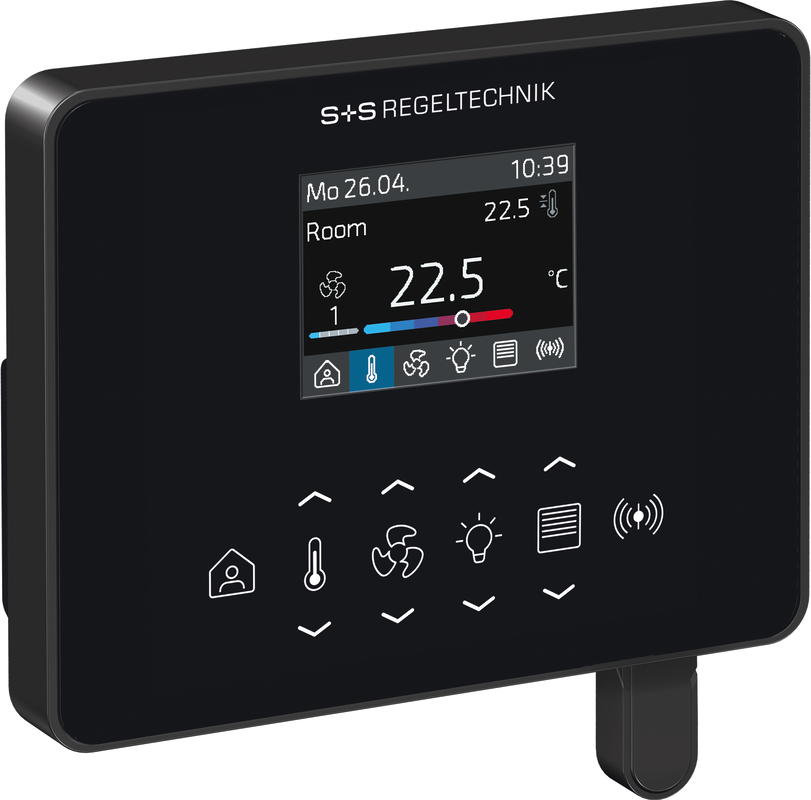

All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in white or black. Wall mounting is on standard flush-mounted boxes.
